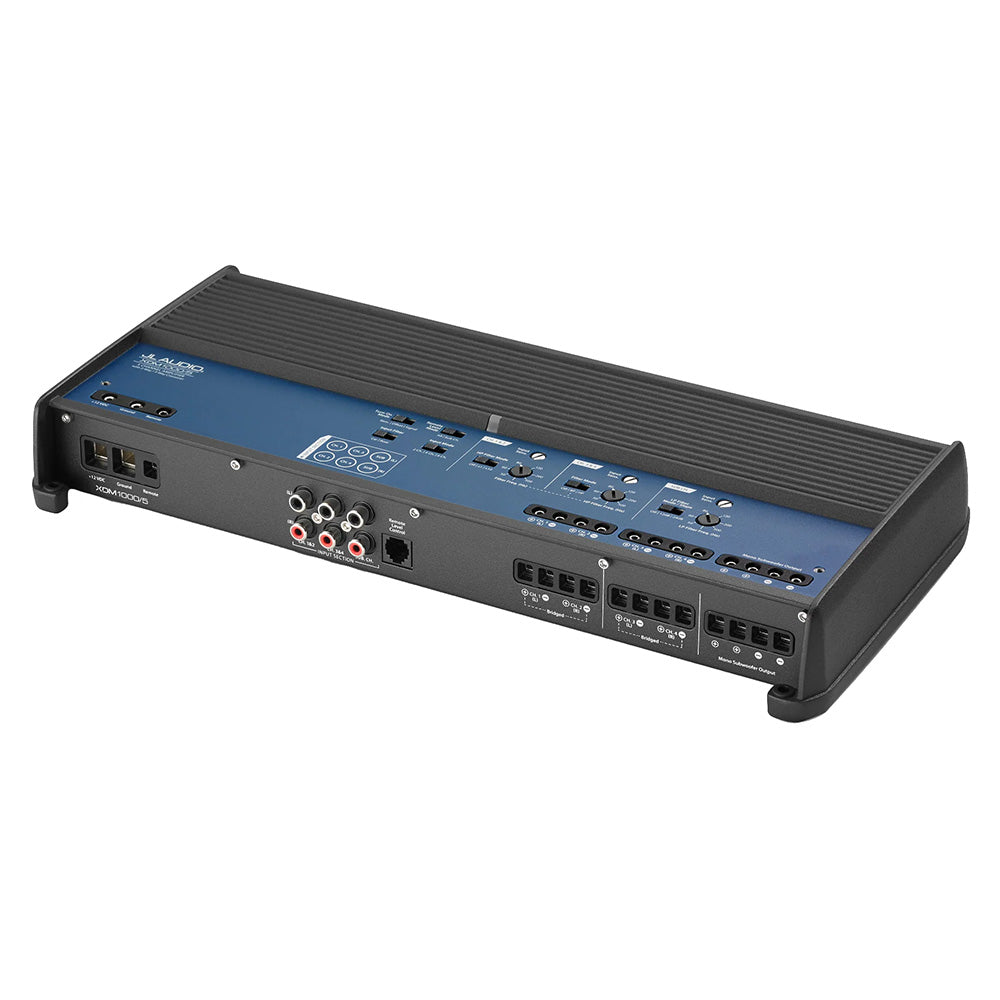

JL Audio XDM1000/5 XDM Series 5 Channel Class D Amplifier, 1000W, for Marine and Car Audio

With four main channels and a dedicated subwoofer channel, the JL Audio XDM1000/5 can run a full speaker system and a sub from one chassis. At 4 ohms it produces 75 watts RMS on each main channel and 400 watts RMS on the subwoofer channel, rising to 100 watts and 600 watts respectively at 2 ohms. JL Audio designed the XDM line to serve boats and cars alike.

NexD switching technology pushes overall efficiency above 80 percent, which lowers current draw and heat. Differential-balanced inputs working with a dual-mode input filter reject noise, while fully variable filters and calibrated level controls sit under a sealed security cover. Rollback protection keeps the amplifier from shutting down because of thermal overload, and turn-on can be triggered by signal sensing, DC-offset sensing or a standard 12-volt lead. The powder-coated aluminum housing resists corrosion.

• 5 channels, Class D, NexD technology
• RMS at 4 ohms: 75 W x 4 main, 400 W x 1 sub
• RMS at 2 ohms: 100 W x 4 main, 600 W x 1 sub
• Operating voltage: 11 to 14.5 VDC
• Fuse rating: 80 A (AFS, AGU or MaxiFuse); minimum 4 AWG power and ground wire
• Size: 2.05 in. H x 14.73 in. W x 7.09 in. D; weight 6.15 lb
• Three auto turn-on modes and sealed control cover
• 3-year manufacturer warranty
